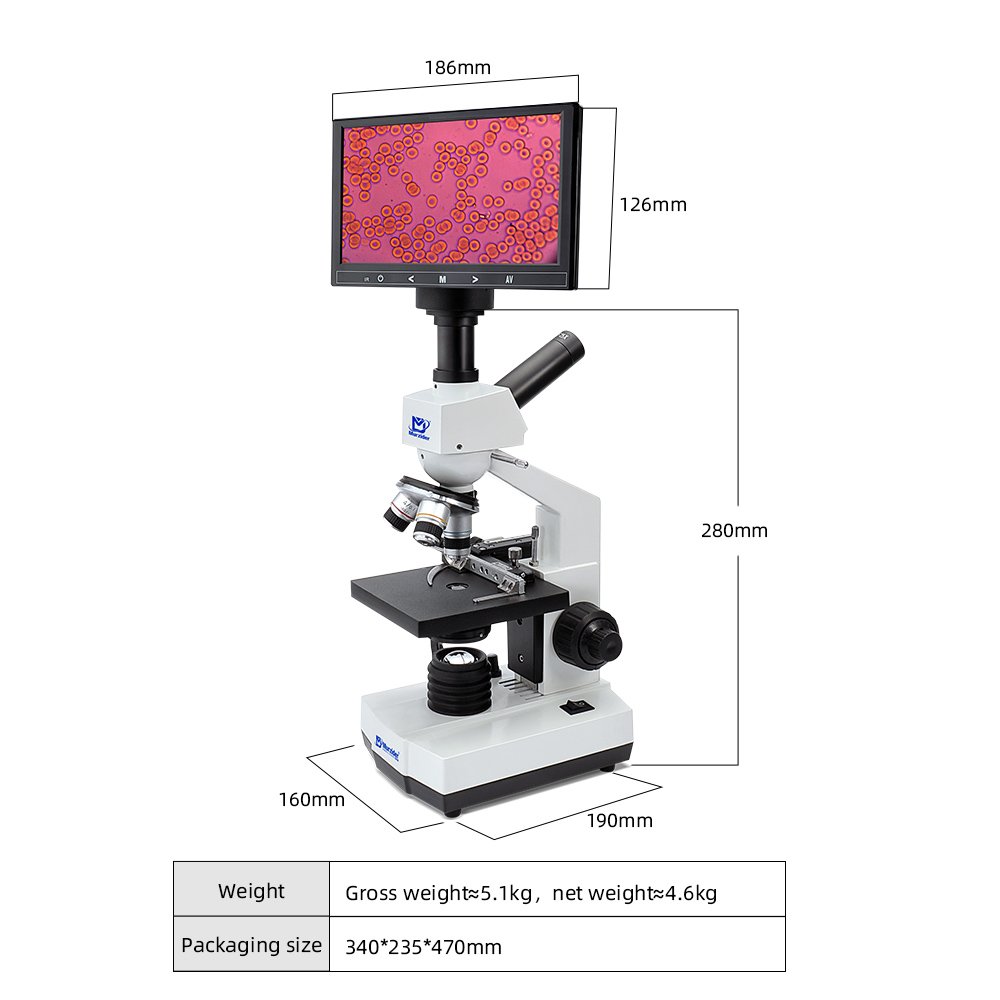

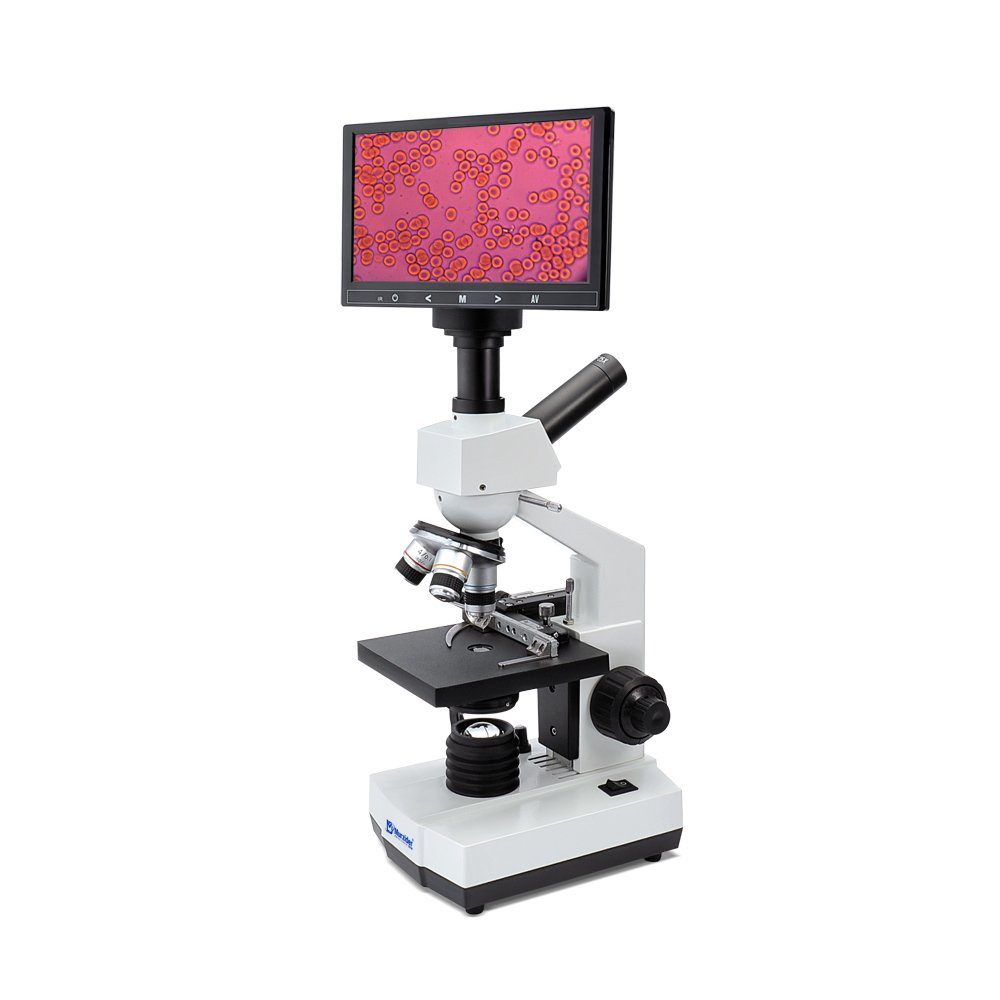

Biological Microscope

This integrated biological microscope features an achromatic objective lens, a wide-angle eyepiece, a camera, and an integrated display screen. Its optical system provides clear imaging and a wide field of view, making it widely applicable in biology, medicine, industry, agriculture, and other fields. It is an ideal instrument for medical, teaching, and research institutions. Eyepieces: Wide-angle eyepiece WF10X (Φ18mm), Wide-angle eyepiece WF25X (Φ12mm); Objectives: 195mm achromatic objectives; Display screen: 5MP high-definition, 7-inch, 5MP high-definition, 9-inch (optional); Observation head: Monocular TV, 5-degree diopter, refractive adjustment converter, three-hole (inward ball bearing positioning); Stage: Single-layer moving platform
\

\
This integrated biological microscope features an achromatic objective lens, a wide-angle eyepiece, and a camera integrated display screen. Its optical system provides clear imaging and a wide field of view, making it an ideal instrument for medical, teaching, and research institutions with wide applicability in fields such as biology, medicine, industry, and agriculture.
\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

eyepiece	Wide-angle eyepiece WF10X (Φ18mm)
	Wide-angle eyepiece WF25X (Φ12mm)
objective lens	195 Achromatic Objective Lens 195
Display screen	5-megapixel high-definition, 7-inch screen
	5-megapixel high-definition camera, 9-inch screen (optional)
Observation head	Monocular TV
diopter	±5 degrees of refractive adjustment
converter	Three-hole (inward ball bearing positioning)
Platform	Single-layer mobile platform, dimensions: 110mm × 120mm
Focusing mechanism	Coaxial focusing with coarse and fine movements, fine movement increment: 2μm
Condenser	Abbe condenser
Lighting system	LED lighting, adjustable brightness LED
