Biological Microscope
2,700.00 AED

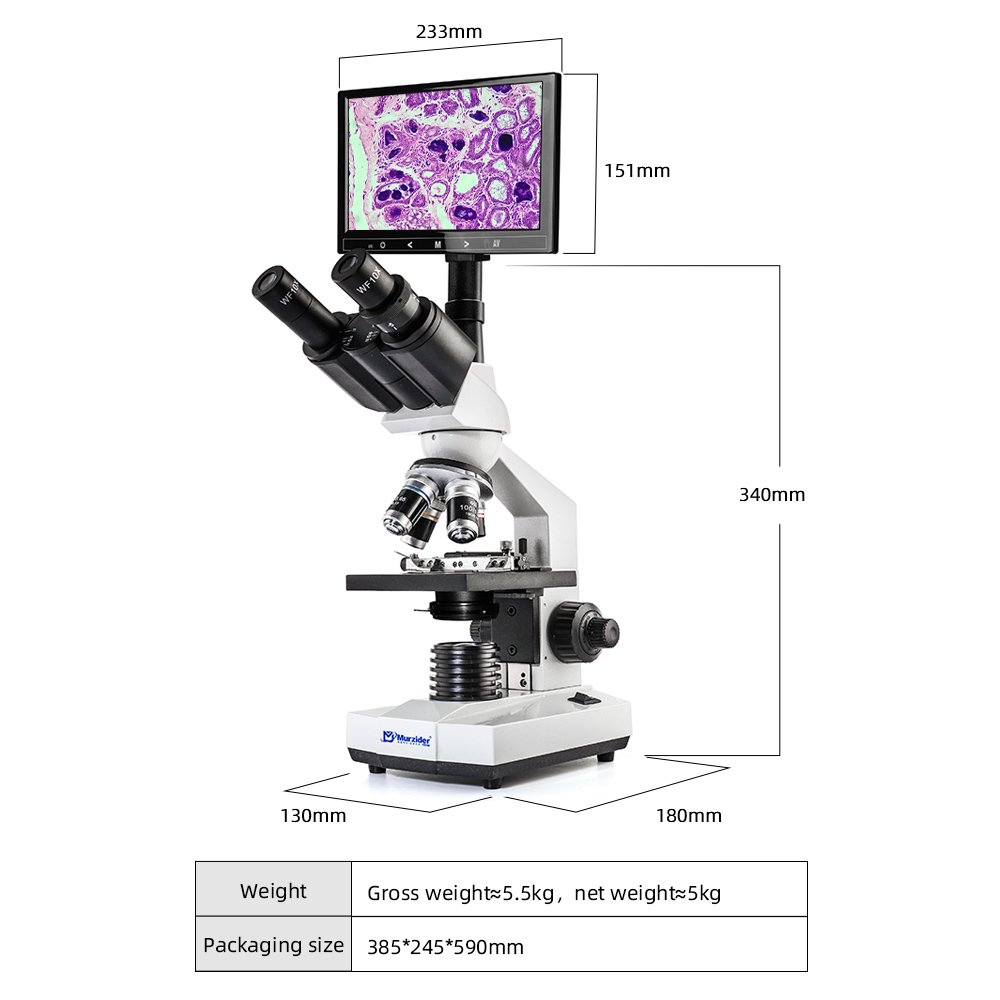

- Trinocular Biological Digital Microscope with 9" HD Display
- \nPerformance Features: Suitable for fields such as biology, pathology, and bacteriology. With appropriate auxiliary equipment, it can realize image acquisition, storage, and analysis processing; it can observe bacteria, cells, and microorganisms. Eyepieces: Wide field of view eyepiece WF10X ● Wide field of view eyepiece WF16X. Objectives: Achromatic objectives 4X/10X/40X(S)/100X(S, Oil) ● Trinocular eyepiece tube ● Observation head: Hinged, 30° tilt, 360° rotation ● Diopter: 5 degrees diopter adjustment ● Interpupillary distance: 55-75mm ● Stage: Double-layer mechanical stage, size: 140X155mm ● Movement range: 70X5
Product Description
Performance characteristics:
\\n
\\nApplicable to fields such as biology, pathology, and bacteriology
\\n
\\nWith appropriate auxiliary equipment, image acquisition, storage, and analysis processing can be achieved;
\\n
\\nIt can be used to observe bacteria, cells, and microorganisms.
\\n
\\n
\\n
\\neyepiece : WF10X Wide-field Eyepiece
\\n
\\nobjective lens : Achromatic objectives 4X/10X/40X(S)/100X(S, Oil)
\\neyepiece tube : Three eyes
\\nObservation head : Hinged design, 30° tilt, 360° rotation
\\ndiopter : ±5 degrees of refractive adjustment
\\nInterpupillary distance : 55-75mm
\\nPlatform : Double-layer mechanical stage, dimensions: 140X155mm
\\nMovement range : 70X50mm
\\nFocusing mechanism : Coaxial coarse and fine focusing, focusing range 25mm, accuracy: 2μm
\\nCondenser : Φ2-Φ30mm variable aperture with Φ32 color filter, NA1.25 Abbe condenser.
\\nLighting system : 6V/20W halogen lamp, adjustable brightness 6V/20W
Technical Specifications
| Product Name | Biological Microscope |
|---|---|
| Product Type | Diagnostic Equipment |
